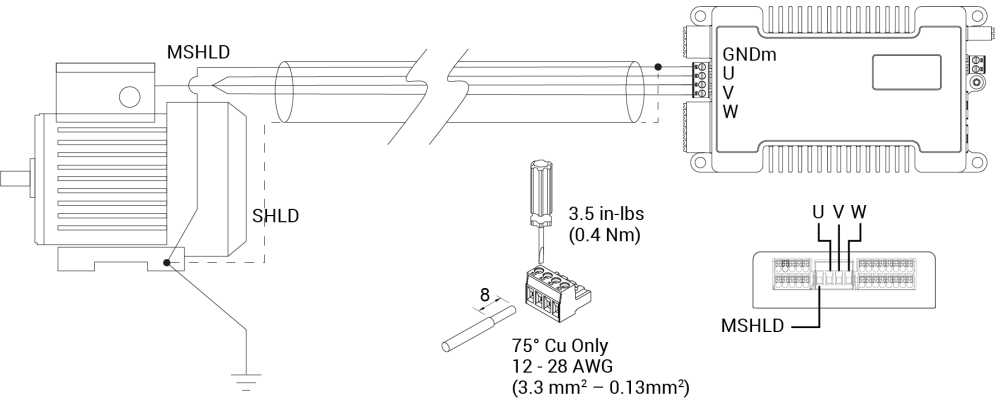

Installation and Wiring / Connecting Motor
Terminal Definition | |
---|---|
U | Motor Coil Phase U |
V | Motor Coil Phase V |
W | Motor Coil Phase W |
GNDm | Motor Chassis Ground |
MSHLD | Motor Cable Shield |
Terminal Definition | |
---|---|
U | Motor Coil Phase U |
V | Motor Coil Phase V |
W | Motor Coil Phase W |
GNDm | Motor Chassis Ground |
MSHLD | Motor Cable Shield |
